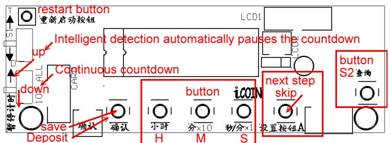

107_EMC Button, switch,
position and description |
|
|
|
|
|
SW2:
Sliding up
Select “Automatic pause countdown”, the
appliance will automatically suspend the countdown when the current is lower
than 20W. If the timer shows the remaining time, the pause countdown will be
more than a few minutes, the controller will
automatically shut down and restart. |
|
SW2:
Sliding down
Select “Continuous Countdown”, the
countdown will not be paused, and the controller will automatically shut down
and restart until the countdown is completed. |
|
Setup steps
（Can be set without timing） |
|
◎Press "Start setting
button" to start setting, press to save, no longer modify other,
you can directly press the restart button
◎When the test timing (clearing
is being counted), if the time is to be cleared, long press the query
button (S2), there will be a “di di ..” sound
and then release the button, it will be cleared. |
|
Button usage Set
button: Skip to the next step (not stored), button H.M.S. Cycle 0 to 9, 0 to
5 Save
button: Save the modified parameters after pressing |
|
Start setting
(Click the set button) |
|
Setting
step flow(Please refer to the webpage for detailed instructions.) |
|
|
Set the base value of the coin Button
H, select 0~9 dollar Button
M, S, choose 0 to 99 cents |
|
|
|
Starting
price Button
H is equal to increase, 0 to 9 cycles Button
S is equal to reduction, 9 to 0 cycles |
|
|
|
Can
set the time range: 9 hours 59 minutes Button
H, set the number of hours, 0 to 9 cycles Button
M, set the ten-digit number of minutes, 0 to 5
cycles Button
S, set the number of digits in minutes, 0 to 9
cycles |
|
|
|
Superimposed
price Button
H is equal to increase, 0 to 9 cycles Button
S is equal to reduction, 9 to 0 cycles |
|
|
|
Can
set the time range: 9 hours 59 minutes Button
H, set the number of hours, 0 to 9 cycles Button
M, set the ten-digit number of minutes, 0 to 5
cycles Button
S, set the number of digits in minutes, 0 to 9
cycles |
|
|
|
Automatic cut-off time: You can set the time range: 0 minutes to 59 minutes If
there is no power for a long period of time, it will be powered off and
cleared. 0 minutes is equal to no check, that is, continuous timing. |
|
 |
Countdown
and other mode reminder sounds Range:
0 to 9 times
|
|
| Another mode(Model 107_EMC10) | ||
 |
Set the base value of the coin Button M, S, choose 0 to 9 cycle |
|
 |
Starting
price Button H is equal to increase Button S is equal to reduction |
|
 |
Can
set the time range: 9 hours 59 minutes Button
H, set the number of hours, 0 to 9 cycles Button
M, set the ten-digit number of minutes, 0 to 5
cycles Button S, set the number of digits in minutes, 0 to 9 cycles |
|
 |
Superimposed
price Button H is equal to increase Button S is equal to reduction |
|
 |
Can
set the time range: 9 hours 59 minutes Button
H, set the number of hours, 0 to 9 cycles Button
M, set the ten-digit number of minutes, 0 to 5
cycles Button S, set the number of digits in minutes, 0 to 9 cycles |
|
 |
Automatic cut-off time: You can set the time range: 0 minutes to 59 minutes If there is no power for a long period of time, it will be powered off and cleared. 0 minutes is equal to no check, that is, continuous timing. |
|
 |
Countdown
and other mode reminder sounds Range: 0 to 9 times |
|
|
|
||
| Large denomination notes the difference (Model 107_EMCB) | ||
 |
Maximum amount $ 99,9999 | |
 |
||
 |
Maximum amount of one pulse | |
 |
||
 |
Minimum amount of one pulse | |
 |
||
|
|
||
|
Read
the amount of income |
||
|
|
Not
stored: 26 is the amount that has not been deposited yet. Last:
Last deposited amount Total:
From the beginning of use to the current total income amount, More than
50,000, will accumulate from 0 |
|
|
|
Click
the save button 26
becomes the last income So
the total becomes 26 |
|
|

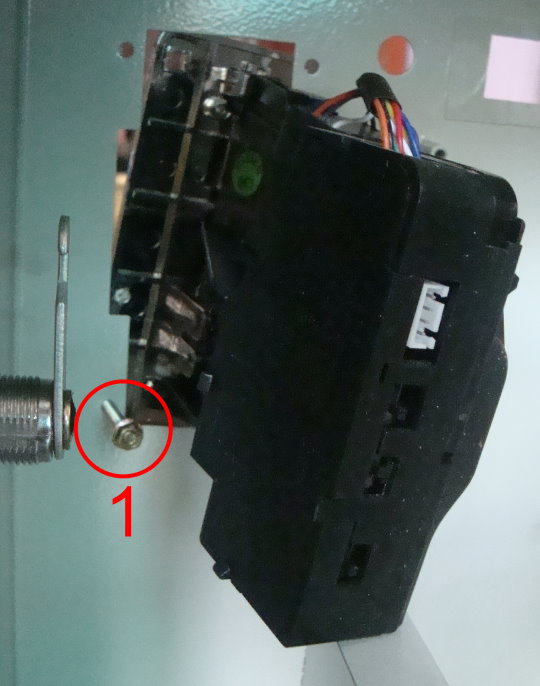

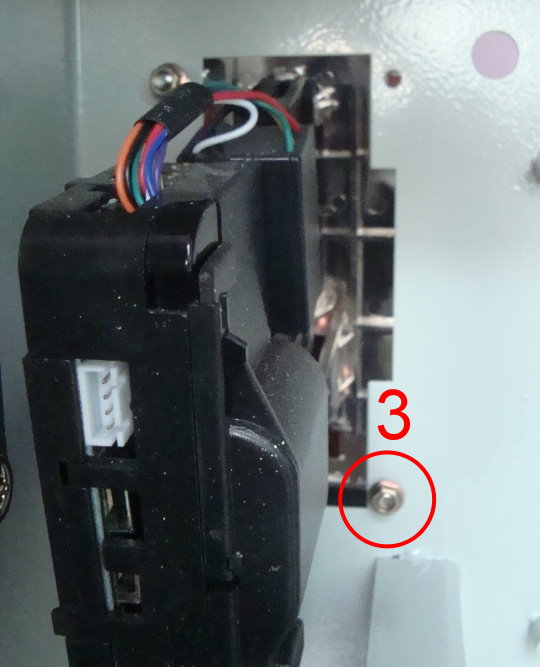

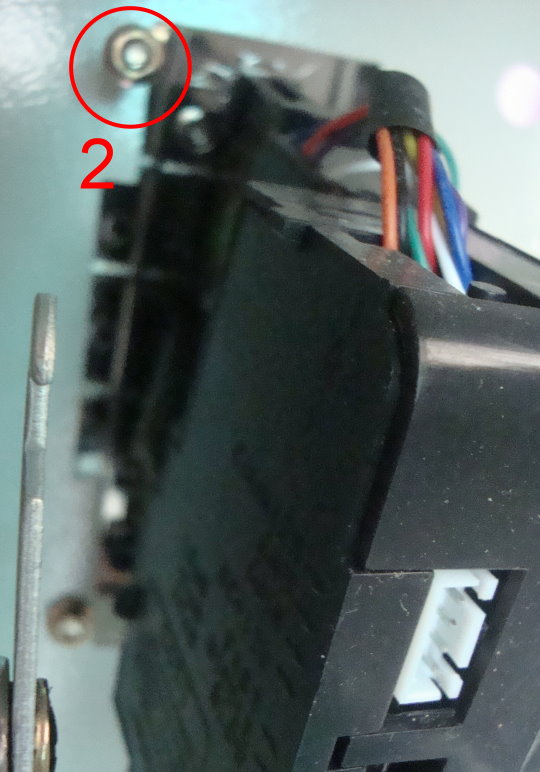

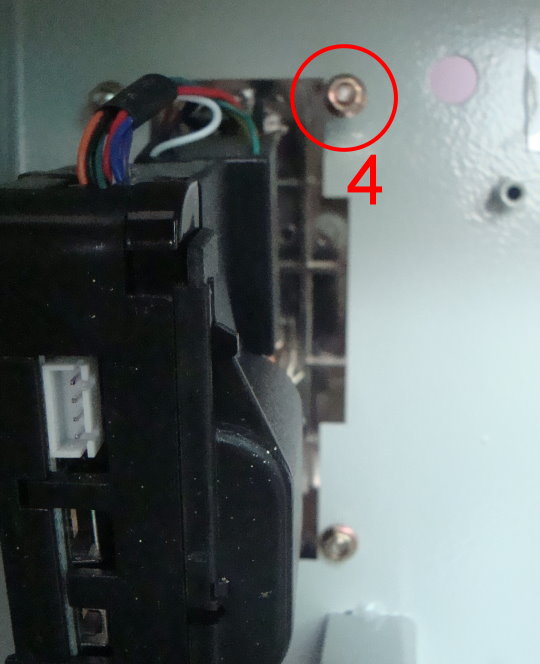

Steps for fixing the screws of the coin selector |
|||
 |
 |
 |
 |
